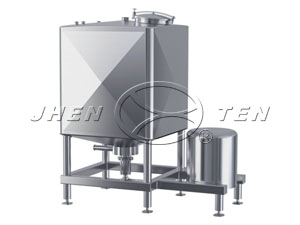

JTRCL Magnetic Agitator Mixing Tank

JTRCL Magnetic Agitator Mixing Tank

    Magnetic Agitator Mixing Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(ASME Section VIII) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements

Product Options

Tank design pressure:
Jacket design pressure:
Liner:
Insulation:
In-outlet:
Finish type:
Polishing precision:
Structure:

Dimensions

JHENTEN magnetic agitation tank, the bottom of the magnetic stirring device in the bottom of the tank, belongs to the aseptic tank.Magnetic stirring tank and tank with different head structure form, the tank can jacketed form or combination of single root tree different requirements;Configuration magnetic stirring bottom or side into the type, can achieve the CIP and SIP.


Tank Optional Configuration

Magnetic agitator mixing tank can configure aseptic air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.


Application
• Can be used as storage Tank, mixing tank, temporary Storage Tank, mixing tank, etc., Used in liquid materials’ mixing and storage such as food, dairy products, fruit juice beverage, pharmaceutical, chemical and biological engineering.


Feature
• Welding die static sealing of sleeve to replace dynamic mechanical seal, completely solve the problem of dynamic mechanical seal leakage, so there is no leakage, no external pollution, safety and simple structure, easy disassembly, easy to clean, no dead corner.
• At the bottom of the device, in the case of less material can be stirring, mixing blade design is unique, appropriate mixing work speed of 20 r/min to 400 r/min, can adapt to all kinds of different material mixing,
• Stirring speed adjust by frequency converter, to meet the requirements of the various process of stirring speed.
• Volume 50 l ~ 20000 l, and other specifications, according to the actual needs of customers.


Design Parameter

Design
temperature

According to customers’ requirement(0℃~160℃)


Material

Jacket

304

Feet

304


Normal Model And Main Technical Parameters

Parameters Model JTRCL—150 JTRCL—300 JTRCL—500 JTRCL—800 JTRCL—1000
Effective volume:L 150 300 500 800 1000

Barrel

Diameter:mm Φ550 Φ750 Φ900 Φ1000 Φ1100
Height:mm 650 700 650 1000 1000

Agitator

Power:kW 0.14 0.25 0.75 0.75 1.5
RPM:r/min 20~400(The design can be adjusted according to customer use condition)

The above-mentioned data is the standard, for reference only.It can customize according to customer's requirements.
