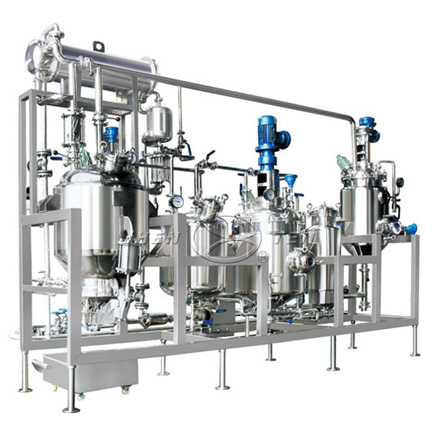

JTNHZ Extract concentrat and recovery skid

JTNHZ Extract concentrat and recovery skid

    1. the group consists of distilling pot, pipe heater, evaporator, cooler, oil separator, oil collector, medicine liquid pump, weighting vent, liquid storage pot, filter, vacuum pump, and electric box. Deformers are fixed in the steam outlet of the distilling pot and evaporator. The units without steam heating can be fixed with oil heating system.
    2.It can operate to hot recycling distill and condense, normal distill, condense, deposit and seep.
    3.It can work in the condition of minus pressure, normal pressure, and plus pressure. It can apply to distill water, ethanol and solvent, up to GMP standard...

Dimensions



Features

1. the group consists of distilling pot, pipe heater, evaporator, cooler, oil separator, oil collector, medicine liquid pump, weighting vent, liquid storage pot, filter, vacuum pump, and electric box. Deformers are fixed in the steam outlet of the distilling pot and evaporator. The units without steam heating can be fixed with oil heating system.
2.It can operate to hot recycling distill and condense, normal distill, condense, deposit and seep.
3.It can work in the condition of minus pressure, normal pressure, and plus pressure. It can apply to distill water, ethanol and solvent, up to GMP standard.
4.The group has great advantages in multi-function, high efficiency, energy saving, and wide operation arrange. It pioneers in comprehensive capacity in nationwide; it is the pilot equipment in distilling natural herbal medicine, especially fit for research institution, universities and colleges, and factory pilot experiment, or distilling valued medicine, or low temperature fresh herbal. It has been widely used in factories.

Technical parameters

Model JTNHZ-50 JTNHZ-100 JTNHZ-200 JTNHZ-300 JTNHZ-500
Precooling tank Volume(L) 100 200 400 300*2 500*2
Extract tank Volume(L) 50 100 200 300 500
Jacket Pressure(Mpa) 0.3
Motor (kW) / 1.1 1.5
Storage tank Volume(L) 50 100 200 300 500
Jacket Pressure(Mpa) 0.3
Motor (kW) 0.25 0.25 0.37 0.55 0.75
Evaporator Evaporation(Kg/h) 40 70 125 200 300
Heat area (M2) 0.6 1.2 2.4 3.8 5.7
Cooling area (M2) 1.7 3.5 7 9.7 14.5
Liquid pump Motor Power (kW) 0.55
Vacuum pump Motor Power (kW) 1.5 1.5 1.5 2.2 3
Steam Consumption (Kg/H) 35 55 100 140 210
Size Dimension(mm) 2500*900*2000 3000*900*2400 3600*1000*2600 4500*1100*2800 6000*1400*3200
