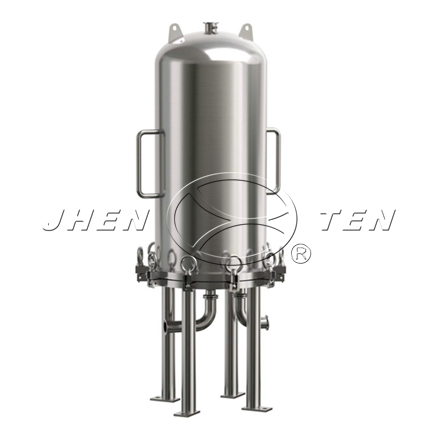

JTGDB Lenticular Filter Housing

JTGDB Lenticular Filter Housing

    Alternative Diatomite Filter
    JTGDB Lenticular Filter Housing is a new type of stack filters can be used in place of diatomite filter, of tiny impurities in all kinds of liquid filtration, clarification, purification

Product Options

Shell diameter:
Series number:
Qty. Of basket:
Model of basket:
Qty. of Bag Filter:
Model of Bag Filter:
Shell Material:
In-outlet connection:
O-ring:
Finish Type:
Cartridges connection:
Type of construction:
Dimension:
Magnet model:
Diatomite filtration Filter area:
Filter plate Diameter:
Qty. of Filter Stacks:
Model of Filter Stacks:

Dimensions

JTGDB Lenticular Filter is a new type of stacks filter,can be used in place of diatomite filter, for tiny impurities in varied kinds of liquid filtration, clarification, purification.

The structure is designed and manufactured according to the health level, internal is no dead corner and mirror polishing,it ensure no residual liquid and easy to clean.

JTGDB Lenticular Filter Housing can maximum install 4 filter stacks,it can fit for big flow requirements .

Feature
Easy to clean, the inlet/outlet can be configured special discharge valve, easy to drain.
Easy to replace the filter stacks, reduce the filter medium leakage



Application
Microbe and solid filtration of alcohol, syrup, beer
End filtration of fruit juice and juice concentrate
Pre filtering of juice membrane filtration
Clarification of alcohol, enzyme dissolution, liquid gum, olive oil
Pharmaceutical, chemical, electronic filtration



Surface finish

polishing precision

Inner surface Ra≤0.3μm ,  Outside surface Ra≤0.4μm.



Operating Conditions

Max Operating pressure

0.6MPa

Max Operating Temp.

150℃

Disinfect

Online or steam sterilization:
121℃/30min



Material

Vent

304, 316L

Eyebolt

304

Stabilizer blade

304



Connection

Shell connection

Flange

Pressure gauge (option)

1.5” tri-clamp

Drain valve(option)

1” tri-clamp

Vent valve (option)

1/2” tri-Clamp

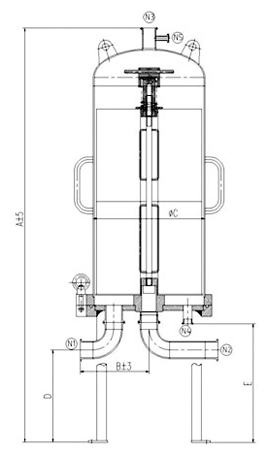

Dimension Parameters

12’’ Filter Stacks

16’’ Filter Cake

1pcs

2pcs

3pcs

4pcs

1pcs

2pcs

3pcs

4pcs

A:Total height

950

1210

1490

1760

960

1230

1500

1770

B: The distance from inlet to center

200

250

C:Diameter

Φ325

Φ450

D:The height from in-outlet to ground

280

280

E:The height from vent valve to ground

356

356

In-outlet N1, N2 dimension

2”

2”

The above-mentioned data is the standard, it can customize according to customer's requirements.
